SpectraProof® Softproof Software

Spectraproof® works with a combination of spectral mathematics and ICC color management. This software calculates the composition of process and spot colors for on-screen simulation. In addition, the solution can visualize substrates, primers, varnishes and hot foils. Functions for controlling the display, ambient light quality and reporting tools round out the solution. These are all key factors in reducing costs and streamlining processes. ...

SpectraProof is a unique soft proofing system for multi-channel PDFs. Its simplicity is only surpassed by its accuracy. The more information you have about your colors, the more accurate the on-screen reproduction. A single Lab measurement, a single spectrum, or spectral ramps printed on the substrate over black feed the built-in spectral prediction model to achieve ever-increasing precision. There are also automated functions to simulate substrates, primers, varnishes and hot foil stamping in a photorealistic but color-correct manner.

The SpectraProof softproof advantages in detail:

In the printing industry, it is standard to create a proof, i.e. "hardcopy proof" on paper before printing. At Proof GmbH, we use state-of-the-art inkjet printers and special software for this purpose. This simulates the final print result when printing on paper.

Finishing processes such as hot foil stamping, foiling, varnishing and priming cannot be represented in such a hardcopy contract proof. Some substrates, such as textured paper or paper with inclusions, can also only be represented very poorly.

A solution that works at the push of a button and allows on-screen simulation - in real time - is therefore a welcome addition. The advantages:
Color changes, substrates, printing processes, and new designs can be run through immediately without material expense or loss of time.

With SpectraProof from Lacunasolution, substrates can be simulated via a photo-realistic display. This represents an essential supplement to the classic proof.

All that is needed to use the SpectraProof softproofing software is a color-compliant monitor and a measuring device. Optionally, a standard light hood and a spectrophotometer are used, enabling end-to-end quality control and ensuring the same viewing conditions at different locations.

Functions of Spectraproof:

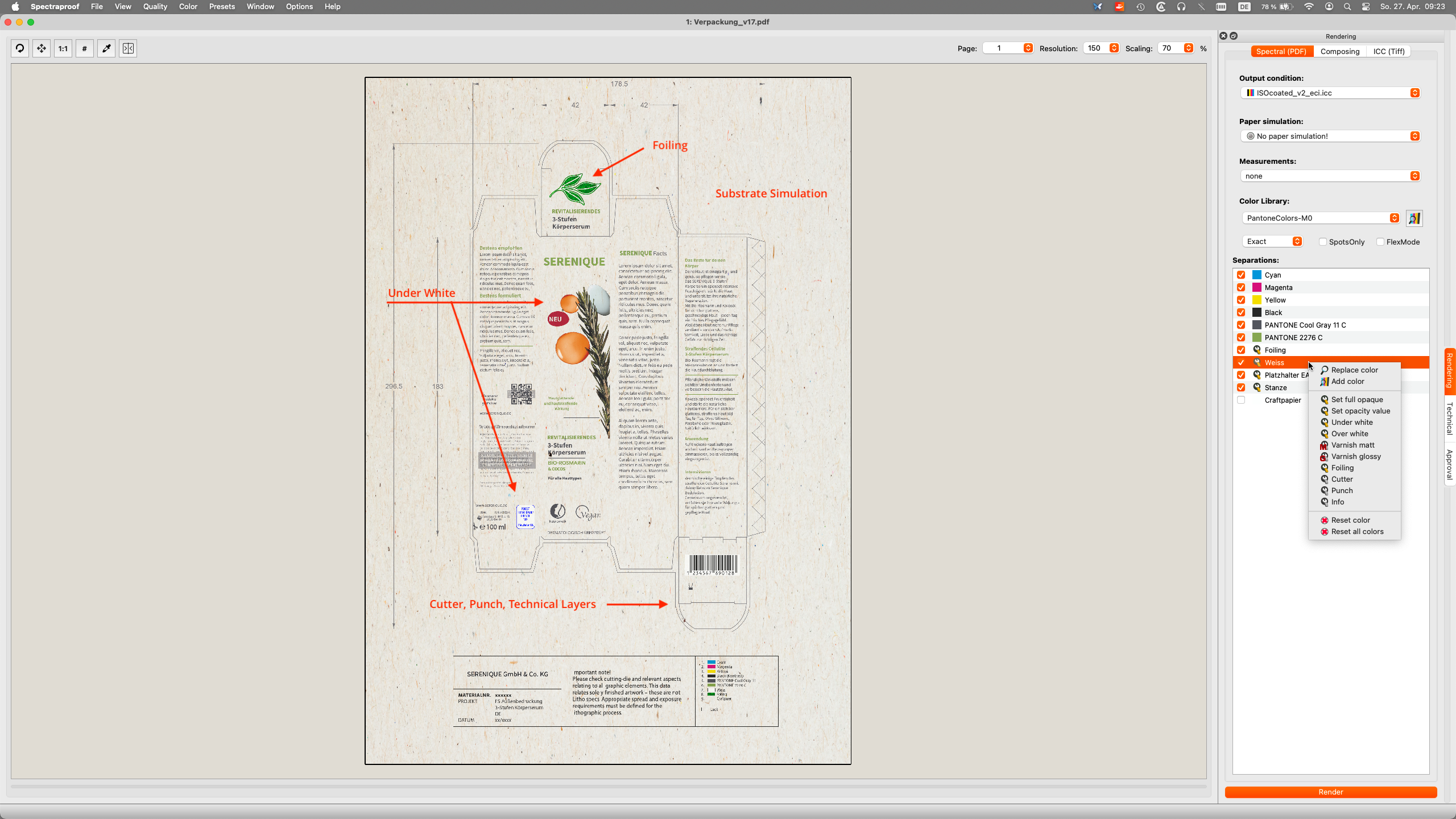

• Simulation of printing processes, substrates and finishes directly on the screen
• Real-time availability
• Near-perfect representation of the final result
• Unmatched flexibility and sustainability
• Simplicity of use
• Color measurement devices can be integrated for calibration and control
• Validation of viewing conditions (monitor, light, job parameters)
• Fast job approval
• Combination of ICC-supported color management, spectral color mathematics and photorealistic image composing

SpectraProof as a softproofing solution impresses with its simplicity, flexibility and modularity. The softproofing system is a unit in itself and offers "close loop" control mechanisms through simple measurement and control. With Spectraproof, any printing process and finishing method can be easily and quickly displayed in a photorealistic manner and with high precision in terms of color accuracy.

A spectrophotometer can be used to measure colors or substrates, calibrate the monitor, and verify all colors rendered in a job. Missing colors can be replaced with colors from the built-in spectral libraries or quickly re-measured. Basic annotation tools and the ability to share complete jobs with colleagues and partners facilitate collaboration.

In its maximum configuration, the SpectraProof® system is the perfect combination of "led-normlicht monitor hood", hardware calibratable monitor and the spectral soft proofing software. All together it enables easy remote collaboration and color communication at the highest level.

SpectraProof versions:

Spectraproof Standard: 2.500€ / Host

• Support of 4C and NChannel ICC profiles
• Measuring of substrates
• Validation for monitor, light and job, reporting
• Monitor software calibration
• Job ticket support
• Comment and approval functions
• PDF and TIFF processing

Spectraproof Professional: 4.500€ / Host

• Support of 4C and NChannel ICC profiles
• Support of Cxf4 and CGATS colour exchange for spot colours
• Visualisation of substrates, primers, coating and foiling
• Measuring of colours and substrates
• Validation for monitor, light and job, reporting
• Monitor software calibration
• Job ticket support
• Comment and approval functions
• Spectral prediction for process and spot colours
• Secure job exchange facilities
• PDF and TIFF processing

Spectraproof Viewer 1.300€ / Host

• Overtake of Spectraproof jobs
• Validation for monitor, light and job, reporting
• Monitor software calibration
• Commenting and release functions
• Reporting

Software maintenance contract for 1 year: 20% of list price / host

• The annual software maintenance contract includes updates, bug fixes and remote support.
• The software maintenance contract is mandatory for the first year. If a customer want’s to update after a period without SMA this is possible on an individual quote.

Rental and Leasing:

• Rental and leasing offers on request.
